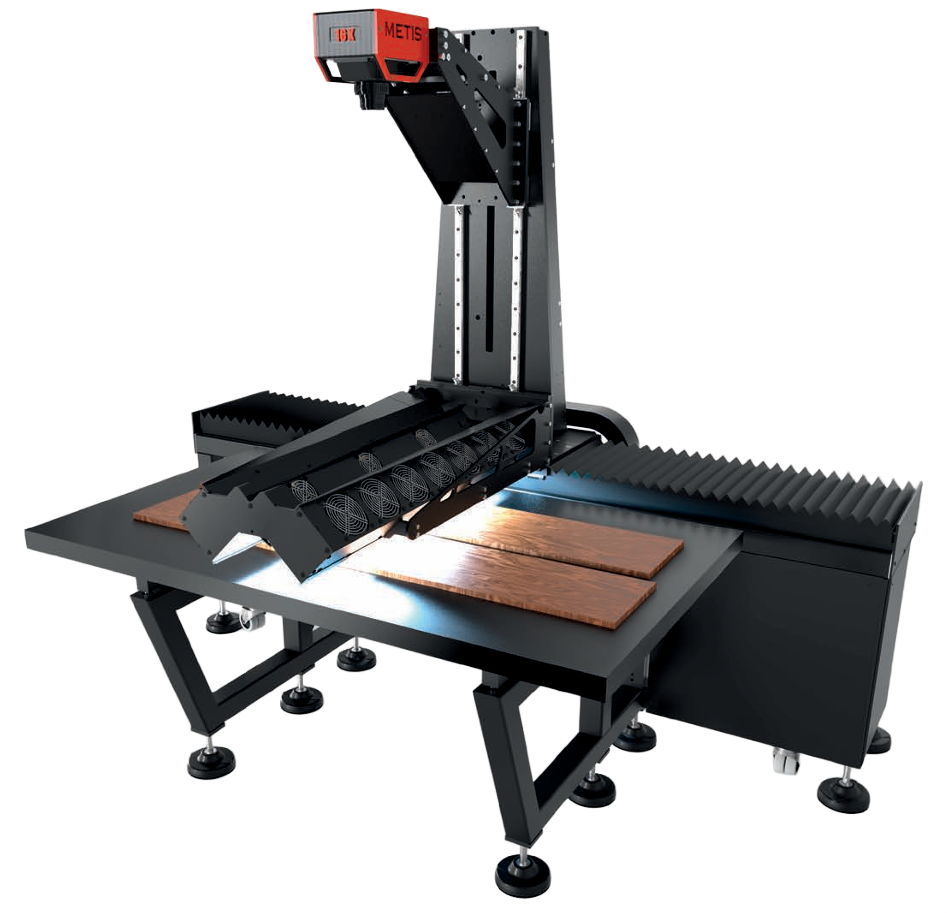

METIS DRS 1220 DCS Plus

Equipped with a state-of-the-art 16K imaging sensor, the DRS 1220 DCS Plus achieves a native optical resolution of up to 1200 PPI at 126 x 34.5 cm and 600 PPI at full scan format. The resolution can also be software-adjusted from 200 to 2400 PPI, providing outstanding clarity and versatility across different applications.

The DRS-DCS scanning system comes with the new and improved DC Synchrolight lighting system updated to the latest LED technology with enhanced lighting power and colour rendering. The DC Synchrolight (Dynamically Controlled Synchronized Light) is a patent-protected METIS technology: 4 light sources (Standard) or 8 light sources (Plus).

METIS DC Synchrolight gives the ability to control and change dynamically, instantly and automatically the angle and intensity of the light emitted by the various light sources in the scanning area. This makes it possible to optimise the result of the digitisation, depending on the type and nature of the originals.

The unique SuperScan mode, combined with the MDC file format, records all natural light schematics in a single acquisition. Using the METIS Light Inspector software, operators can generate multiple visual appearances without rescanning, dramatically streamlining the workflow while achieving results unmatched by other systems.

From the MDC SuperScan file, users can quickly generate dense and accurate 3D Depth Maps directly from 2D colour data. This capability supports advanced applications such as engraving, embossing, digital texturing, and PBR workflows, providing exceptional creative and industrial versatility.

In addition to 3D Depth Maps, the system produces glossiness maps and a full range of PBR outputs, including Normal, Roughness, and Metalness maps. These tools allow accurate simulation, validation, and reproduction of material finishes for high-end industrial décor and creative industries.

Delivered with a full suite of METIS software including Scan Director, Light Inspector, and Color Profiler, the DRS 1220 DCS Plus ensures a smooth, integrated workflow. Each program is user-friendly and fully compatible with the others, supporting fine art, décor, and industrial production needs.

The Scan Merge tool allows multiple captures to be seamlessly stitched together, expanding the scanning area beyond the standard 126 x 69 cm. This enables the digitisation of larger originals without compromising on accuracy or quality.

The system automatically manages exposure, contrast, grey balance, and temperature stability, delivering consistent and reproducible results over time. Even novice operators can quickly master professional scanning thanks to its highly intuitive software interface.

The DRS 1220 DCS Plus offers fast scanning speeds, precise colour reproduction, and ultra-high geometrical accuracy, making it suitable for both décor production and demanding technical applications such as cartography. Its robust design guarantees long-term reliability and performance.

• Scan format: 126 x 69* cm (49.61 x 27.17 in); dimensions can be extended with the proprietary Scan Merge tool, which seamlessly and automatically stitches multiple acquisitions
• New Camera: Equipped with a new digital system allowing extension of native optical resolution
• Optical Resolution: 1200 PPI at 126 x 34,5 cm (49.61 x 13.58 in); 600 PPI at full scan format (software adjustable from 200 to 2400 PPI)
• Image sensor: 16K CMOS trilinear, High Dynamic Range, low noise, and high colour fidelity
• Image processing: 16bit per channel (48bit) independently from selected output format
• Acquisition modes: Scan, SuperScan, Direct SuperScan, DOF+ (various combinations are also possible)
• Focusing: User selectable resolution levels with fine software adjustable focus
• Thickness of the originals: up to 12 cm (4.72 in)
• Patented Lighting System: 8 light sources with variable intensity; thousands of light schematics can be achieved through dimming and light distance adjustments, fully automated and software controlled
• Light Source Type: High CRI LEDs, IR/UV free
• High grade precision/reliable mechanics and optics
• METIS software: all software runs natively at 64bit on Win­dows 10 or 11 64bit Professional edition
• METIS Scan Director software: Drives the scanner and integrates all tools required for the highest quality acquisition. Includes Light Inspector and Color Profiler for a streamlined workflow
• METIS Light Inspector software: Provides extensive post-processing options, including light and appearance adjustments, generation of 3D Depth, Glossiness, and Normal maps, as well as automated stitching
• METIS Color Profiler software: Manages colour accuracy with calibration, profile creation, conversion, and ICC profile validation. Fully supports ICC profiles from scan through to export
• Image Save formats: Metis MDC, Standard TIFF (Colour: 48 or 24bit; Grayscale: 16 or 8bit), JPEG and other formats are also available in normal scan mode
• Holding Table: 140 x 80 cm (55.12 x 31.50 in) – ferromagnetic material – with pressure sensors. Can hold up to 100 Kg (220.46 lbs.)
• METIS Vacuum Table: optional
• Scanner sizes: ~ 210 cm (88.68 in) length, 150 cm (59.06 in) width, 215 cm (84.65 in) height

• Customisable user profiles for workflow optimisation and quick retrieval of system settings
• Fast preview for real-time adjustments, with instant visibility of changes and the ability to switch between presets
• Automatic lighting calibration and grey balance tools
• Comprehensive colour and density controls: exposure, contrast, highlights, shadows, gamma, automatic adjustments, black and white points, histograms, and point analysis
• Full-resolution image view immediately after the scan
• Light Inspector tools for real-time natural light schematic variations and evaluation
• Full ICC support for consistent, accurate colour management
• And much more to refine your workflow and results
